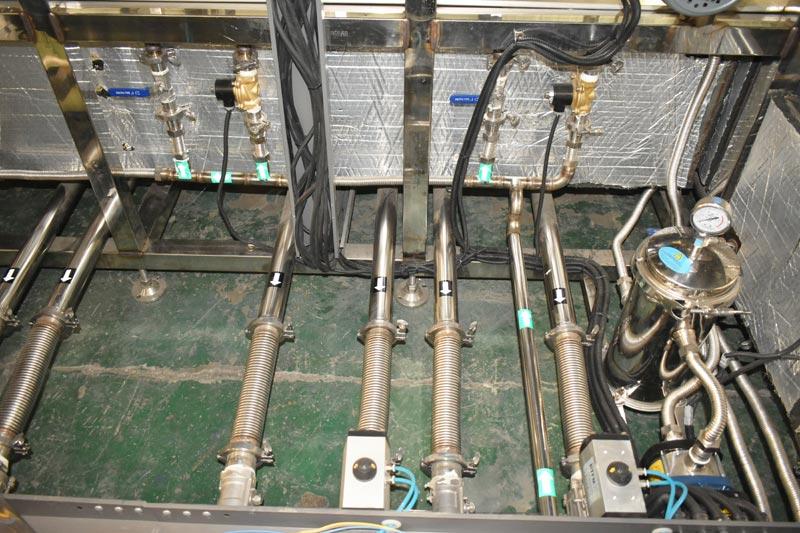

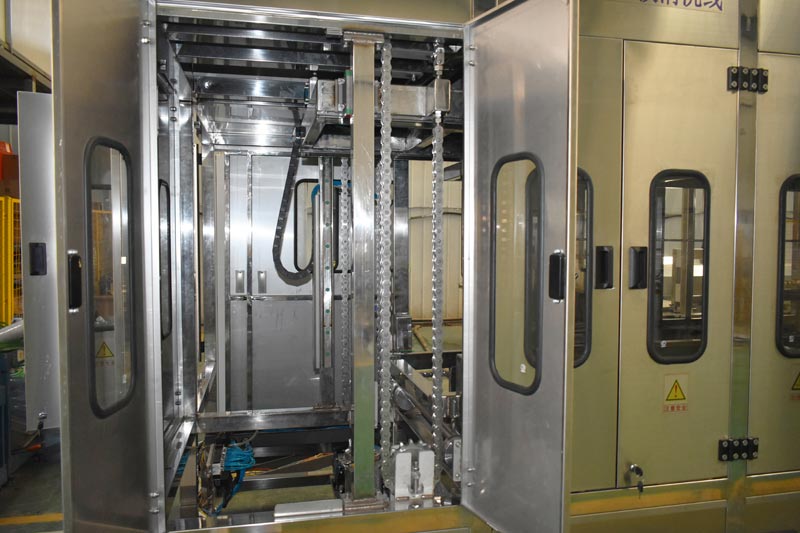

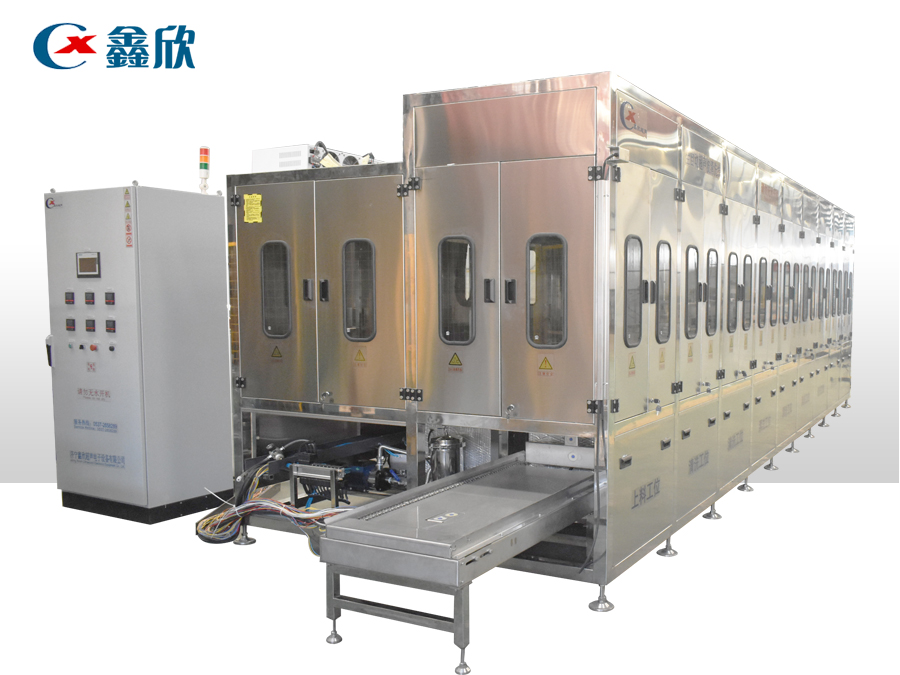

This equipment is designed for cleaning pipe fittings and is equipped with automatic loading and unloading stations, ultrasonic cleaning systems, automatic throwing, automatic overflow, and oil separation devices, spray systems, automatic high-pressure water cutting systems, and automatic drying systems. The automatic conveying system of the robotic arm adopts high-precision linear guides combined with high-precision position detection sensors, and the robotic arm can accurately grasp and place workpieces. The automatic liquid inlet and outlet and automatic heating system have completely achieved unmanned intervention and automatic operation, greatly reducing the labor intensity of workers. The advanced mist treatment system can condense and reflux the mist generated during cleaning, and the air is filtered and adsorbed by activated carbon before being discharged.

The equipment is equipped with an advanced remote diagnostic system, which can enable equipment manufacturers to remotely detect equipment failure points and quickly repair them. At the same time, MS and PROFINET interfaces are also configured for easy interaction and docking with other production lines.
